1. Introduction
What is tempered glass?
Brief history of tempered glass
2. The Science Behind Tempered Glass
How tempered glass is made
The tempering process
Chemical vs. thermal tempering
3. Characteristics of Tempered Glass
Strength of tempered glass
Safety features
Visual qualities
4. Applications of Tempered Glass
Everyday uses in households
Industrial applications
Use in automotive industry
Applications in architecture
5. Advantages of Using Tempered Glass
Enhanced safety
Durability
Resistance to thermal stress
Aesthetic appeal
6. Disadvantages of Tempered Glass
Cost considerations
Limitations in shaping and cutting
Potential for spontaneous breakage
7. Comparing Tempered Glass with Other Types of Glass
Annealed glass
Laminated glass
Heat-strengthened glass
8. How to Identify Tempered Glass
Markings and stamps
Methods for testing tempered glass
9.Safety Standards and Regulations
Global standards
Industry-specific regulations
10. Maintaining and Cleaning Tempered Glass
Best practices for cleaning
Preventing scratches and damage
11. Innovations in Tempered Glass Technology
Recent advancements
Future trends
12. Common Misconceptions About Tempered Glass
Myths vs. facts
13. Choosing the Right Tempered Glass for Your Needs
Factors to consider
Consultation with professionals
14. Conclusion
Summary of key points
Final thoughts on the importance of tempered glass
15. FAQs
What makes tempered glass safer than regular glass?
Can tempered glass be cut or drilled after tempering?
How can I tell if my glass is tempered?
Are there any alternatives to tempered glass for safety purposes?
What are the most common uses of tempered glass?
When you think about glass, you probably envision something fragile and easily breakable. However, tempered glass is quite the opposite. This robust, resilient material is used in various applications, from the screen on your smartphone to the windows in high-rise buildings. But what exactly is tempered glass, and what makes it so special?

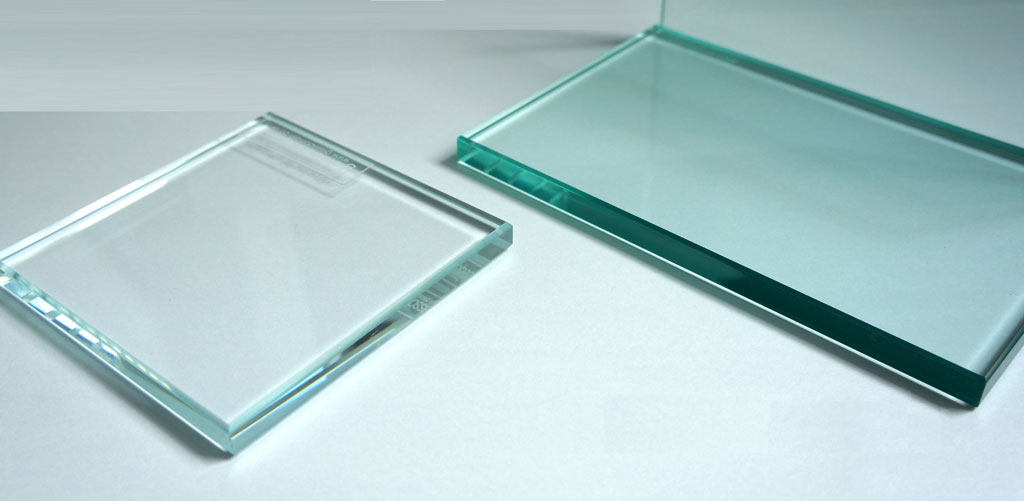

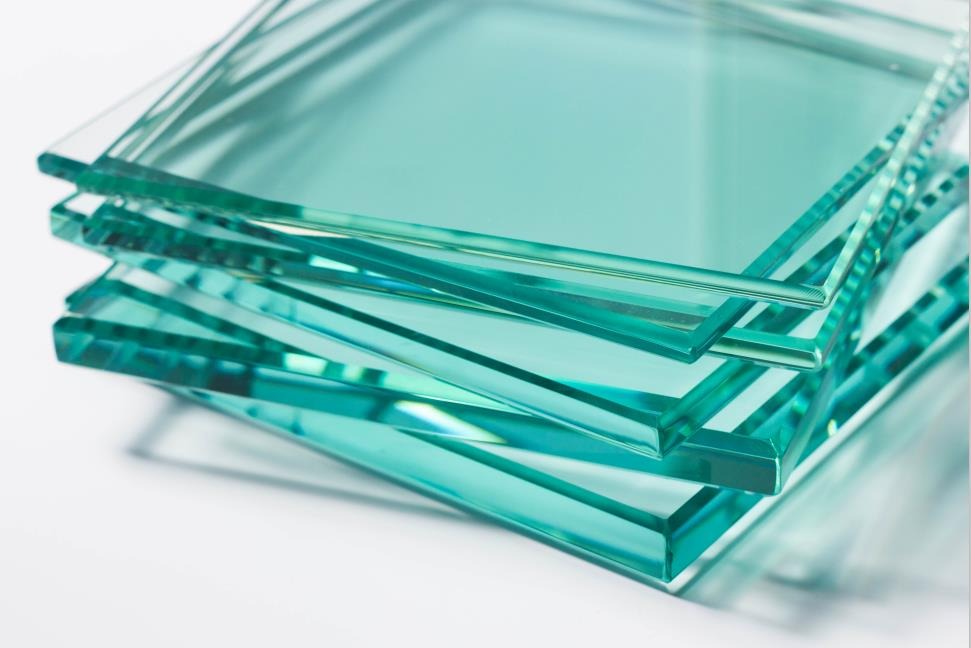

Tempered glass, also known as toughened glass, is a type of safety glass processed by controlled thermal or chemical treatments to increase its strength compared to normal glass. The tempering process puts the outer surfaces into compression and the interior into tension. Such stresses cause the glass, when broken, to crumble into small granular chunks instead of splintering into jagged shards. This granular configuration is less likely to cause injury.
The concept of tempered glass dates back to the early 20th century. In 1903, French chemist Edouard Benedictus accidentally discovered that a glass flask coated with a plastic film didn't shatter upon impact. This discovery eventually led to the development of laminated glass. Later innovations refined the process, leading to the tempered glass we know today, which became popular in various industries due to its safety and durability.
Understanding how tempered glass is made can help appreciate its unique properties.
Tempered glass is produced through a process of extreme heating and rapid cooling. First, the glass is cut to the desired size and shape. It is then heated in a tempering furnace to temperatures exceeding 600 degrees Celsius. Once it reaches the optimal temperature, the glass is rapidly cooled using high-pressure air jets. This quick cooling process, known as quenching, solidifies the outer surfaces while the interior remains somewhat fluid.
The process of tempering glass involves several crucial steps, each contributing to the final product's exceptional qualities. Let's break down these steps to understand how tempered glass is made.
♦ Preparation: The raw glass is cut and shaped to the desired dimensions.
♦ Heating: The glass is heated to a high temperature, typically around 620-650°C (1148-1202°F).
♦ Quenching: Rapid cooling is applied using air jets, creating a balance of compression and tension within the glass.
Tempered glass starts with high-quality raw materials. The type of glass used and other essential components play a crucial role in the final product's properties.
Common types of glass used include soda-lime glass and borosilicate glass. Each type has unique properties that can be enhanced through the tempering process.
Before the tempering process begins, the glass must be precisely cut and shaped. This step is critical as any flaws can compromise the integrity of the final product.
Precision ensures that the glass will withstand the stresses applied during the tempering process. Even minor imperfections can lead to failure during or after tempering.
Heating is a vital step in the tempering process. The glass must be uniformly heated to the correct temperature to ensure optimal results.
The glass is heated to a temperature range of 620-650°C (1148-1202°F). This precise temperature range is crucial for achieving the desired balance of strength and flexibility.
Once the glass reaches the optimal temperature, it undergoes rapid cooling, also known as quenching. This step is where the magic happens, transforming ordinary glass into tempered glass.
Air jets are used to cool the glass rapidly. This rapid cooling creates a layer of compression on the surface, while the interior remains in tension, significantly enhancing the glass's strength.
Ensuring the quality and safety of tempered glass is paramount. Rigorous testing and quality control measures are implemented to guarantee the glass meets stringent standards.
Tests such as impact resistance, surface stress, and fragmentation analysis are performed to ensure the tempered glass's reliability and safety.
While thermal tempering involves heating and cooling, chemical tempering involves an ion exchange process. In chemical tempering, the glass is immersed in a bath of potassium salt at a high temperature. Potassium ions replace the smaller sodium ions in the glass surface, creating a compressive stress layer. Chemical tempering is often used for glass that requires higher surface strength and scratch resistance.
Tempered glass is approximately four to five times stronger than standard annealed glass. This increased strength makes it highly resistant to impact and thermal stress, reducing the risk of breakage from minor knocks or temperature changes.

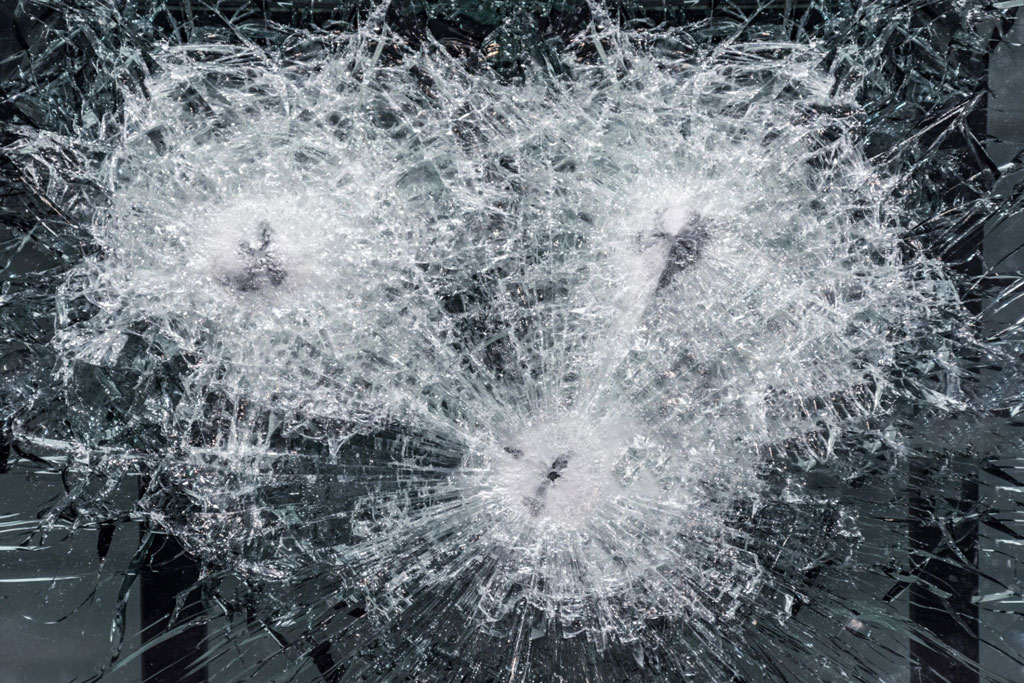

One of the most significant advantages of tempered glass is its safety. When broken, tempered glass shatters into small, blunt pieces that are less likely to cause injury, unlike regular glass that breaks into sharp, dangerous shards.
Tempered glass has a high level of clarity and can be manufactured in various tints and patterns. It also has a smooth surface, which makes it aesthetically pleasing for use in both residential and commercial settings.
Tempered glass is incredibly versatile and is used in many applications.
In homes, tempered glass is commonly found in shower doors, glass tabletops, and oven doors. Its strength and safety make it an ideal choice for these applications.

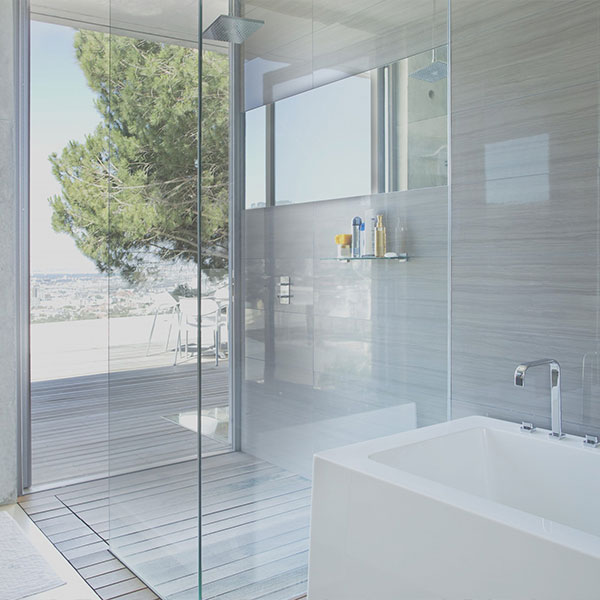

Shower Doors

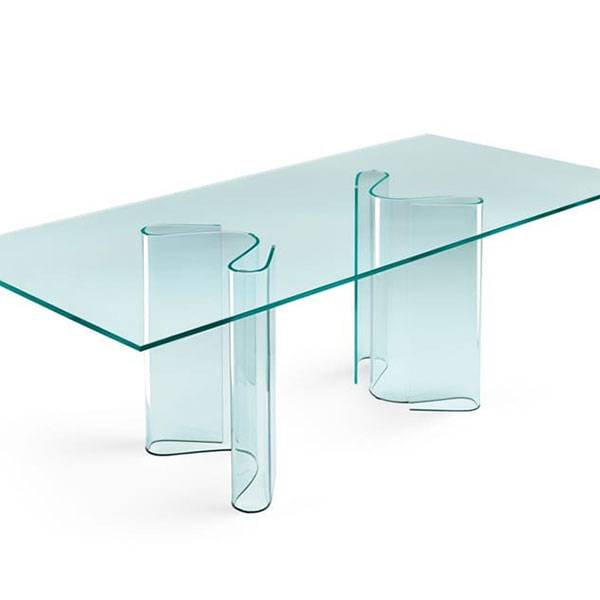

Glass Tabletops

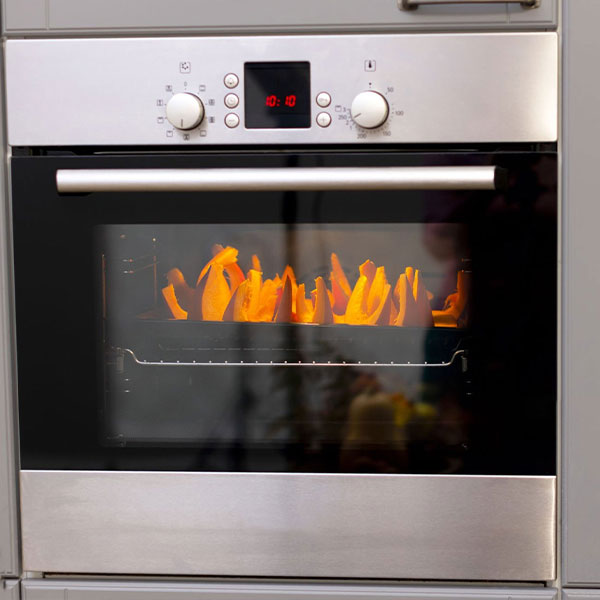

Oven Doors
Industrially, tempered glass is used in machinery guards, shelving, and equipment enclosures. Its durability and ability to withstand high-stress environments make it essential in these settings.
Machinery Guards

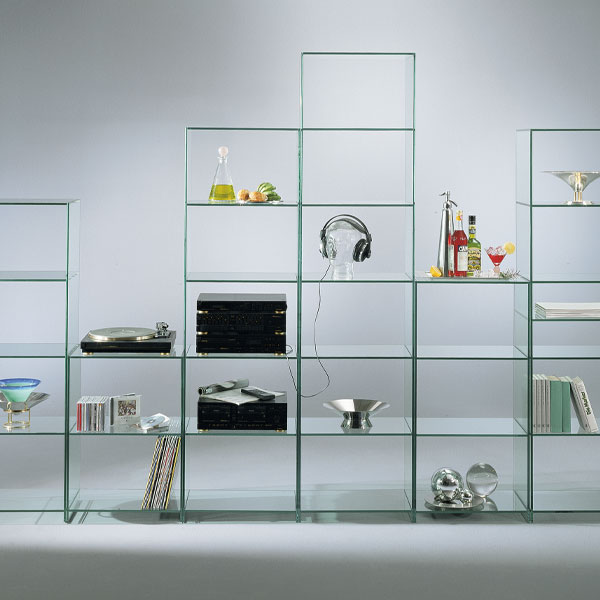

Shelving
Equipment Enclosures

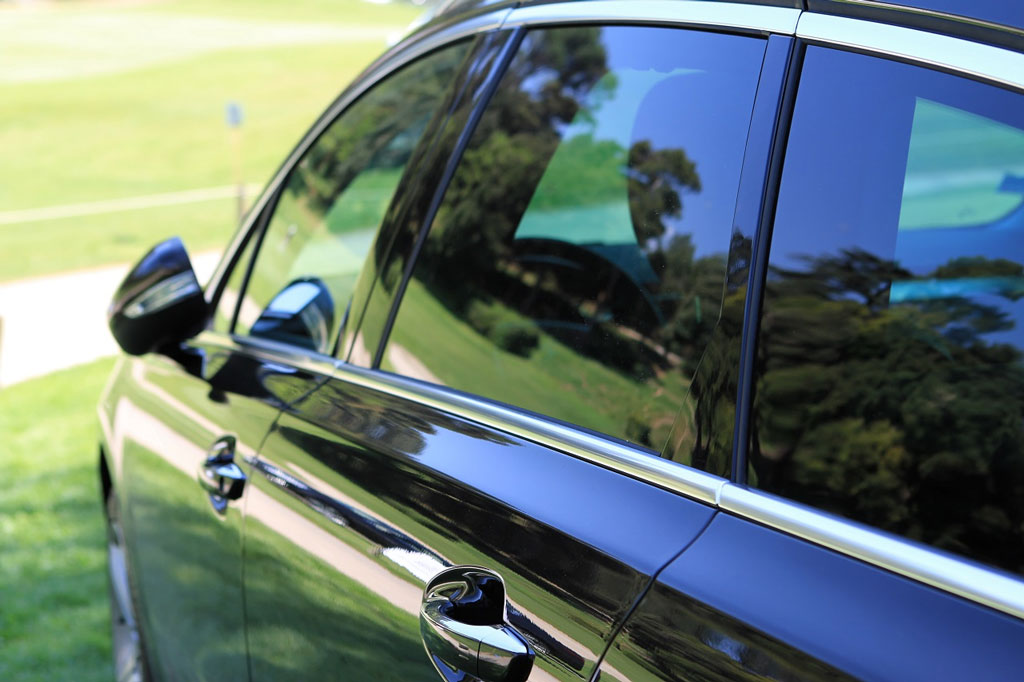

In the automotive industry, tempered glass is used for side and rear windows. It provides the necessary strength and safety, ensuring that passengers are protected in the event of an accident.

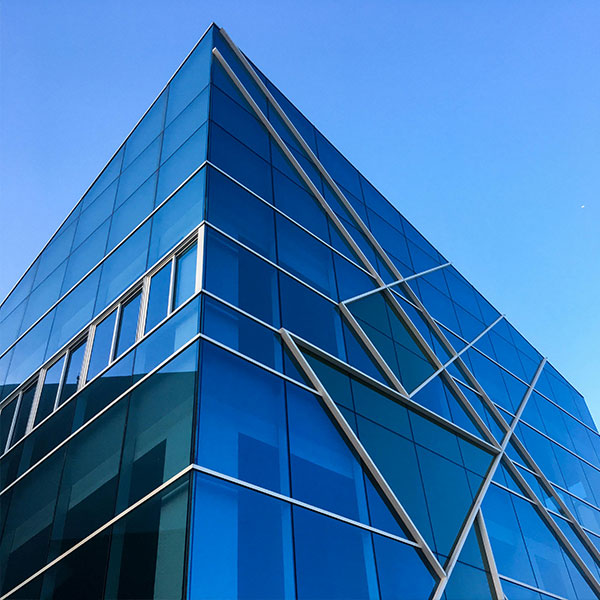

Architects use tempered glass in facades, doors, and windows of buildings. Its strength and aesthetic appeal make it perfect for modern architectural designs that emphasize transparency and light.
Fecades

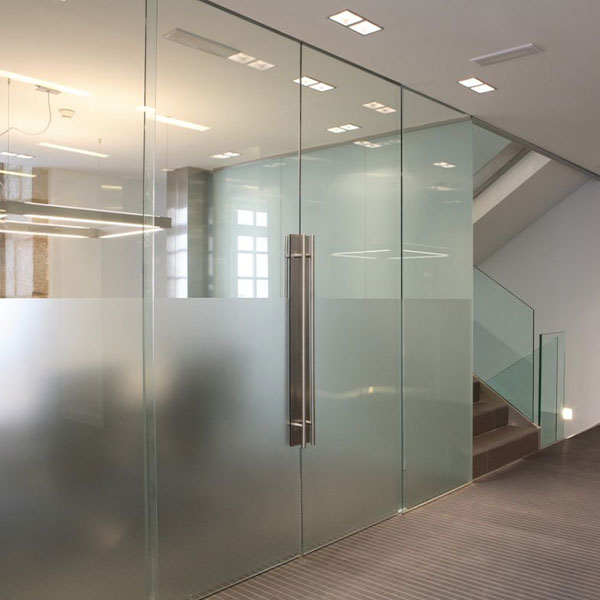

Doors
Windows
The primary benefit of tempered glass is its enhanced safety features. Its ability to break into small, blunt pieces significantly reduces the risk of injury.
Tempered glass is highly durable and resistant to scratches and impacts. This makes it ideal for high-traffic areas and environments where it might be subjected to wear and tear.
Tempered glass can withstand significant temperature variations, making it suitable for use in environments with fluctuating temperatures, such as kitchens and bathrooms.
Available in various tints and finishes, tempered glass can enhance the aesthetic appeal of any space. Its clarity and smooth surface add a touch of elegance to both residential and commercial settings.
Tempered glass is more expensive than regular glass due to the additional processing involved. This higher cost can be a disadvantage for some applications.
Once tempered, the glass cannot be cut or altered. Any modifications must be made before the tempering process, which can be limiting for certain designs and applications.
Although rare, tempered glass can sometimes break spontaneously due to impurities or damage to the edges. This phenomenon, known as "spontaneous breakage," can be a concern in some applications.

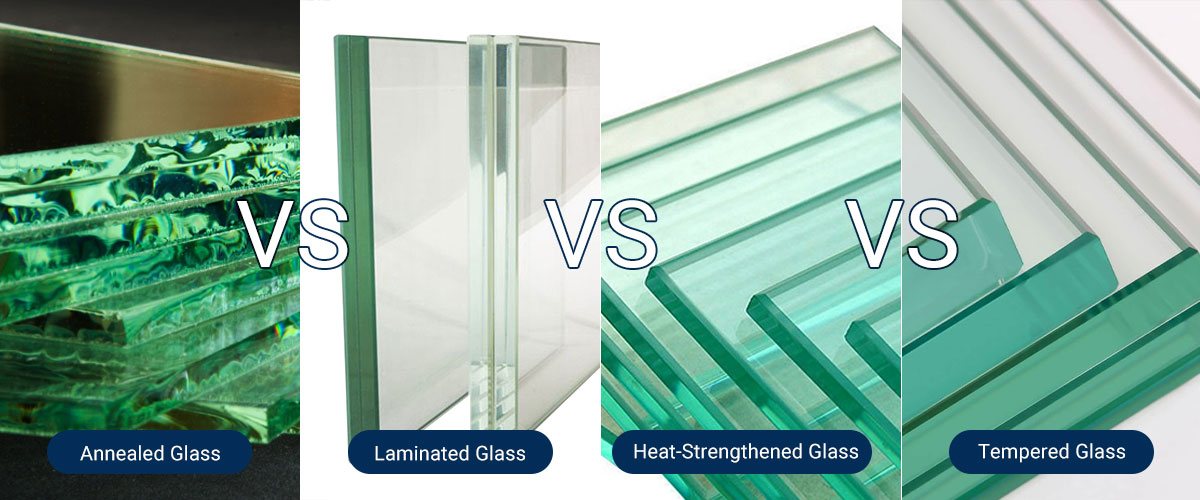

Annealed glass is the most common type of glass and is less expensive than tempered glass. However, it lacks the strength and safety features of tempered glass.
Laminated glass consists of two layers of glass with a plastic interlayer. It offers excellent safety and sound insulation but is more expensive and heavier than tempered glass.
Heat-strengthened glass is similar to tempered glass but is cooled more slowly. It is stronger than annealed glass but not as strong as tempered glass.
Tempered glass typically has a permanent marking or stamp indicating it has been tempered. This mark is usually found in the corner of the glass.
If a marking is not visible, a simple way to test if glass is tempered is to use polarized sunglasses. When viewed through polarized lenses, tempered glass will show a distinctive pattern due to the internal stresses.
Tempered glass must meet specific safety standards, which vary by country. These standards ensure that the glass provides the necessary safety and performance features.
Different industries have specific regulations for tempered glass. For example, the automotive industry has stringent safety standards to protect passengers in the event of an accident.
Best Practices for Cleaning
To maintain the clarity and longevity of tempered glass, clean it with a mild detergent and a soft cloth. Avoid abrasive cleaners that can scratch the surface.
Prevent scratches by avoiding sharp objects near the glass and using protective pads under items placed on glass surfaces.
Recent innovations in tempered glass technology include the development of thinner, stronger glass and improvements in the tempering process to reduce the risk of spontaneous breakage.
Future trends in tempered glass technology may include the integration of smart glass features, such as adjustable tinting and energy efficiency enhancements.
There are several misconceptions about tempered glass, such as the belief that it is unbreakable or that it can be easily cut after tempering. Understanding the facts can help make informed decisions about its use.
When selecting tempered glass, consider factors such as thickness, size, and the specific requirements of your application.
Consulting with glass professionals can help you choose the right type of tempered glass and ensure it meets your needs and safety requirements.
Tempered glass is an essential material in many applications due to its strength, safety, and aesthetic qualities. Understanding its properties, advantages, and limitations can help you make informed decisions for your projects.
Tempered glass is safer because it shatters into small, blunt pieces instead of sharp shards, reducing the risk of injury.
No, tempered glass cannot be cut or drilled after tempering. Any modifications must be made before the tempering process.
Tempered glass usually has a marking or stamp indicating it has been tempered. You can also use polarized sunglasses to look for a distinctive pattern.
Yes, alternatives include laminated glass and heat-strengthened glass, each with its own set of properties and uses.
Common uses include shower doors, automotive windows, architectural elements, and household items like glass tabletops and oven doors.
