JLYARG01
Jily

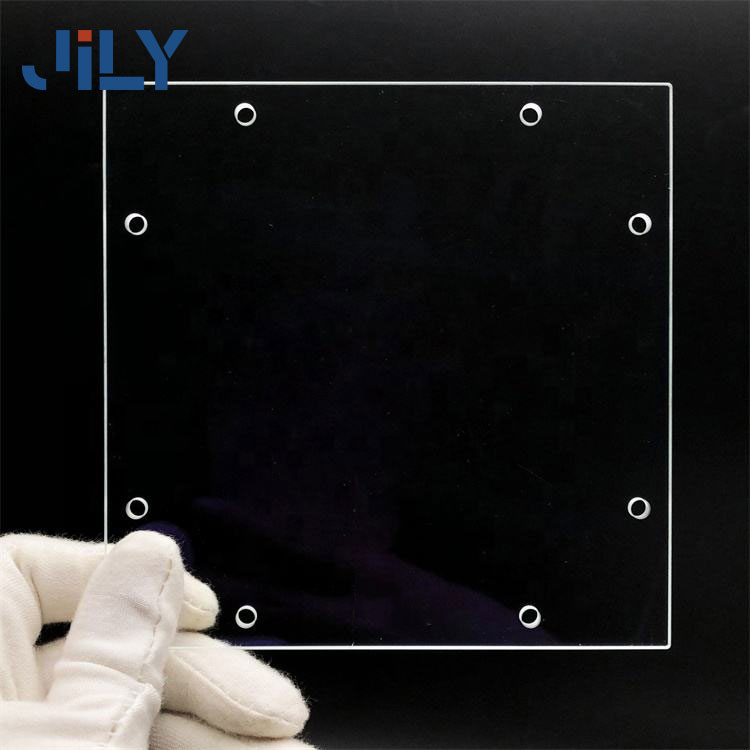

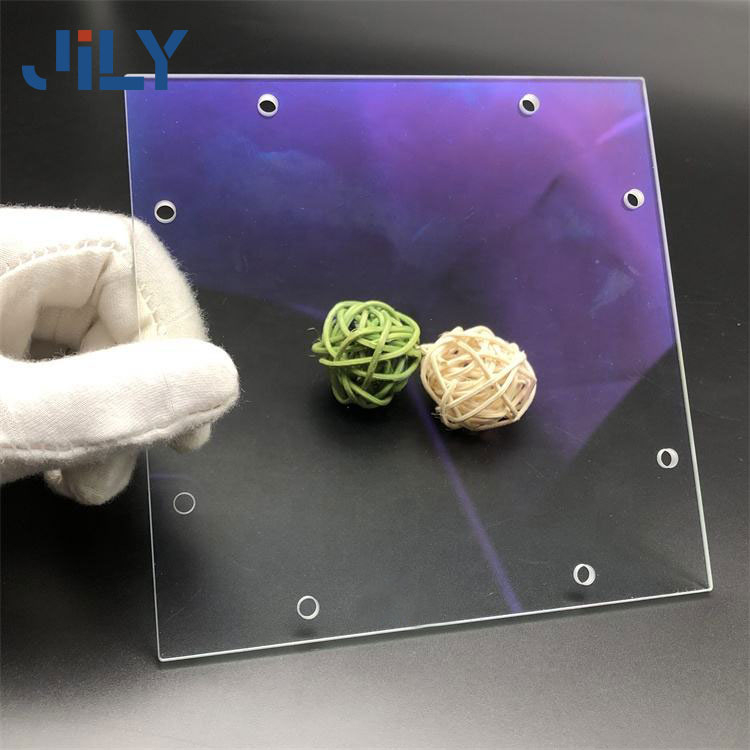

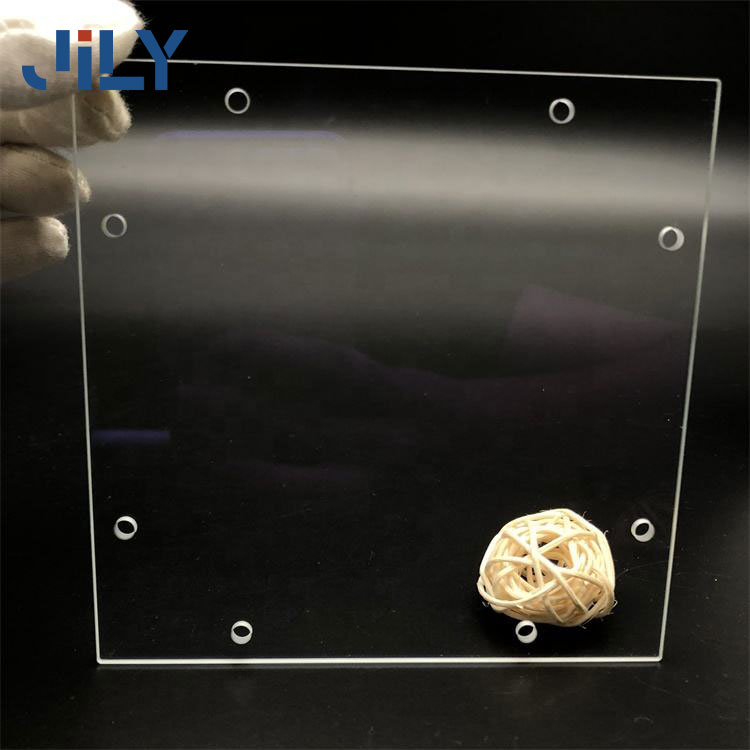

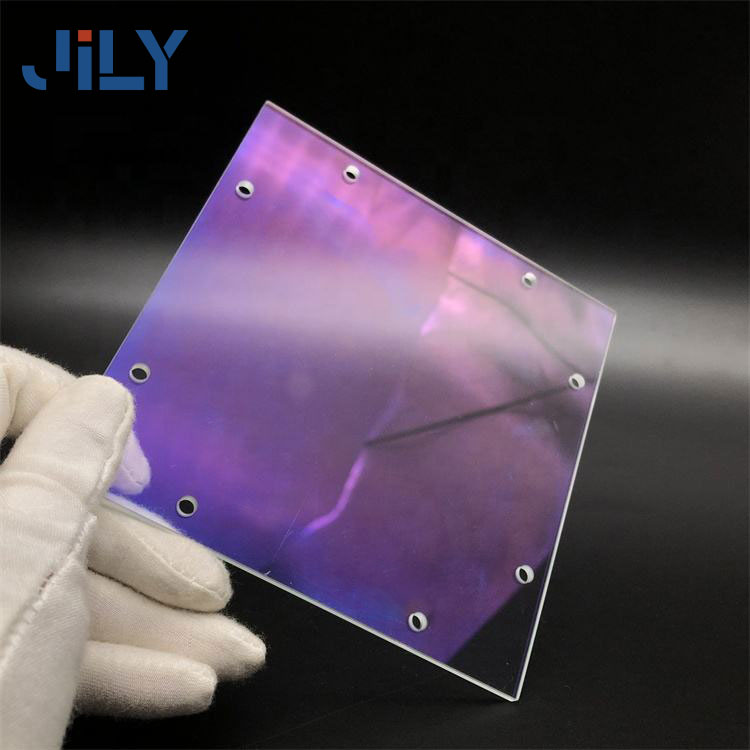

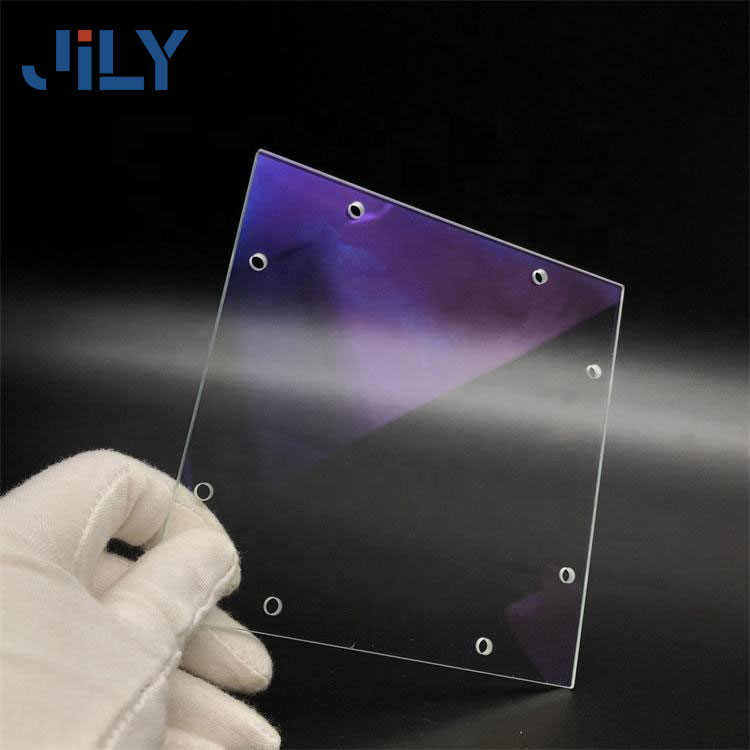

Coating Creates a No-Reflection Effect
UltraClear Low Iron Glass
High Light Transmission
Protective Film
| Quantity: | |
|---|---|
| Glass type | Anti-Reflective |
| Thickness | 3-15 mm |
| Application |
|
| Manufacturing Options |
|
| Recommended Coating Positions | Surface 1 and/or 2 |
| Maximum Size | <3210x6000mm |
| Edge Deletion | No |
| Certificate |
|
| Glass Function | Reduced reflection |
| Fabrication Options |
|
| Appearance | Neutral |
The following glazing make-up suggestions are pre-defined to offer examples of commonly utilized combinations of products.There are many other glass combinations available at Glass Analytics.
| |||

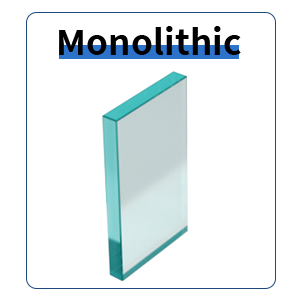

Monolithic | Performance Values | ||
| VISIBLE LIGHT | Transmittance (τv) | 94.0 % |
| Reflectance outside (ρv) | 5 % | ||
| Reflectance inside (ρv) | 5 % | ||
| General Color Rendering Index (CRI) | 100 | ||
| ULTRAVIOLET | Transmittance UV (τuv) | 44.0 % | |
| SOLAR ENERGY | Solar transmittance (τe) | 86 % | |
GLASS: Jily UltraClear Float Glass (CE) Glass, 6mm Calculated Values are in accordance with EN 410:2011 / EN 673:2011 | Reflectance outside (ρe) | 11 % | |
| Reflectance inside (ρe) | 10 % | ||
| Solar absorptance (αe) | 4 % | ||
| Solar Factor (g) | 87% | ||
| Shading Coefficient (sc) | 1.00 | ||
| THERMAL PROPERTIES | U-Value (Ug) | 5.7 W/m²·K | |

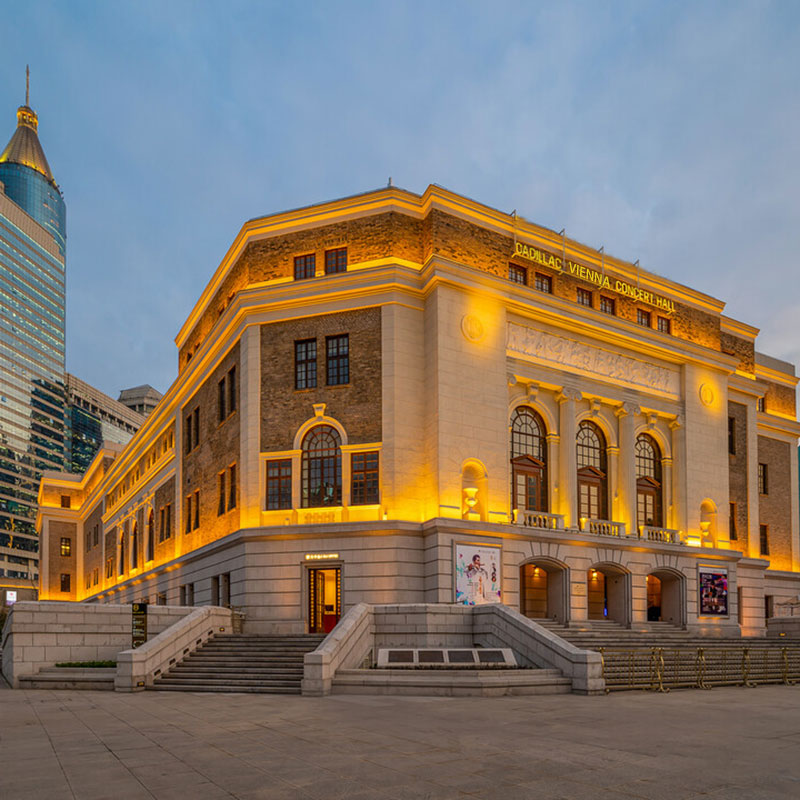

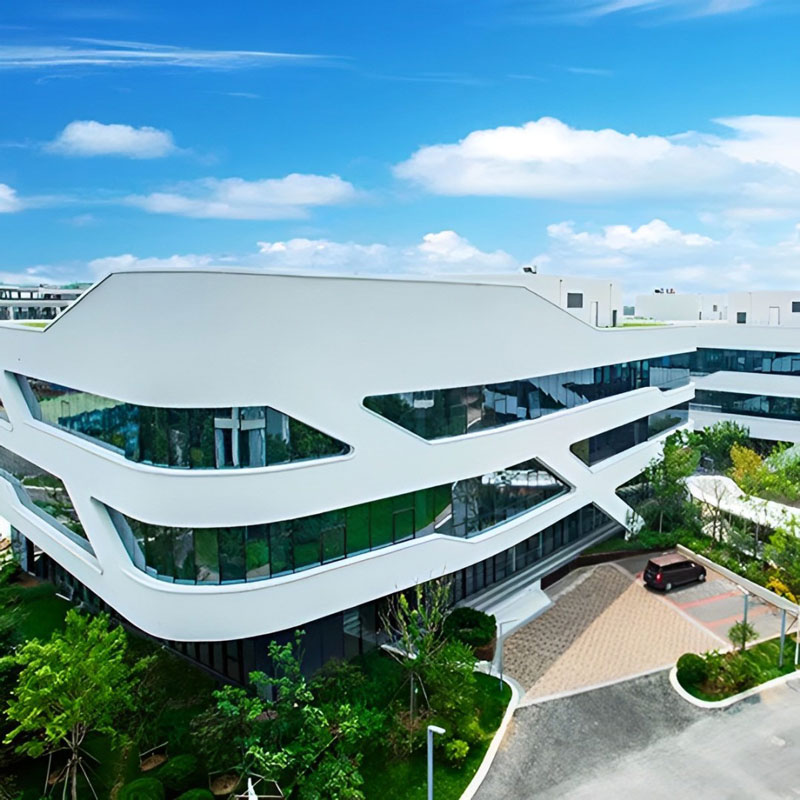

Project
Welcome to Jily, a leading Chinese manufacturer specializing in high-quality processed glass solutions. We are proud to offer a comprehensive range of edgework samples, customizable in size and color to meet the unique requirements of our clients. Our advanced manufacturing techniques and commitment to excellence ensure that each piece of glass we produce is of the highest standard.
Glass edgeworks refer to the various techniques and finishes applied to the edges of glass panes or pieces to enhance their appearance, safety, and functionality. These processes are crucial in both the aesthetic appeal and the structural integrity of glass installations, whether used in furniture, architecture, or decorative items. The following are common types of glass edgeworks:
♦ Flat Polish (FP)
Available In: 3mm(1/8"), 4mm(3/16"), 6mm(1/4"), 10mm(3/8"), 12mm(1/2"), 19mm(3/4").
Description: Smooth, polished edges that offer a sleek and modern finish.
Applications: Ideal for tabletops, mirrors, and any exposed edges in residential or commercial settings.
Benefits: Enhances the glass’s appearance with a sleek, clean look.
♦ Beveled Edge (BE)
Available In: 3mm(1/8"), 4mm(3/16"), 6mm(1/4"), 10mm(3/8"), 12mm(1/2"), 19mm(3/4").
Description: Angled edges that create a decorative, prismatic effect, adding depth and elegance.
Applications: Perfect for mirrors, decorative panels, and high-end furniture.
Benefits: Adds an elegant and sophisticated appearance.
♦ Chamfered Edge (CE)
Available In: 6mm(1/4"), 10mm(3/8"), 12mm(1/2"), 19mm(3/4").
Description: The edge is cut at a 45-degree angle, similar to a bevel but usually smaller.
Applications: Decorative edges, safety glass applications.
Benefits: Reduces sharpness, enhances aesthetics, improves durability, versatile, easy to clean, cost-effective.
♦ Pencil Polish (PP)
Available In: 4mm(3/16"), 6mm(1/4"), 10mm(3/8"), 12mm(1/2"), 19mm(3/4").
Description: Rounded, glossy edges that provide both safety and a refined look.
Applications: Suitable for furniture, glass doors, and safety glazing applications.
Benefits: Provides a soft, smooth edge that is safe to touch.
Available In: 12mm(1/2"), 19mm(3/4").
Description: Features an S-shaped curve, combining concave and convex curves.
Applications: Used in high-end furniture and decorative pieces.
Benefits: Creates a decorative and ornate edge profile.
♦ Mitered Edge (ME)
Available In: 6mm(1/4"), 10mm(3/8"), 12mm(1/2"), 19mm(3/4").
Description: Edges cut at an angle, allowing for seamless joints and clean lines.
Applications: Commonly used in frameless glass installations, such as shower enclosures and glass walls.
Benefits: Provides a clean and professional appearance for joints and corners.
♦ Seamed Edge (SE)
Sanded Edgesto Remove Sharpness
Description: Sanded edges that remove sharpness without the high polish, ensuring safety.
Applications: Appropriate for structural glass, windows, and applications where edges will be concealed.
Benefits: Cost-effective and reduces the risk of injury during handling.
Available In: 6mm(1/4"), 10mm(3/8"), 12mm(1/2").
Description: The edge has a smooth, cascading curve, resembling a waterfall.
Applications: Used in luxury furniture and high-end decorative glass.
Benefits: Provides a unique and visually appealing edge.
Available In: 6mm (1/4"), 10mm (3/8"),12mm (1/2")
Description: The edge is fully rounded, creating a smooth, curved profile.
Applications: Often used in countertops, tabletops, and shelves.
Benefits: Safe, durable, and aesthetically pleasing.
When selecting edgework for glass, consider the following factors:
Application: Functional needs and exposure to edges.
Aesthetics: Desired look and design preferences.
Safety: Handling and usage requirements.
Cost: Budget constraints and cost-effectiveness.
Jily Glass Corner Finishes offer a sophisticated and robust solution for enhancing the corners of glass installations. These finishes are expertly crafted to elevate the look and functionality of glass structures in both residential and commercial settings.
♦ Key Features :
Superior Quality : Made from top-grade materials to ensure longevity and resistance to wear and damage.
Elegant Design : Boasts a sleek and contemporary design that complements various architectural styles.
Versatile Applications : Perfect for use in homes, offices, retail spaces, and other commercial environments.
Easy Installation : Designed for hassle-free installation, making the process smooth and efficient.
Customizable Options: Available in a range of sizes and finishes to meet specific design requirements and preferences.
Jily's Glass Corner Finishes are the ideal choice for anyone seeking to add a polished and professional touch to glass corners, ensuring both aesthetic appeal and structural integrity.
Explore Jily's comprehensive range of glass shapes, designed to inspire creativity and elevate your projects. We specialize in offering a diverse selection of glass shapes, meticulously crafted to meet the demands of modern design and functionality.
♦ Diverse Selection:
Standard Shapes: Includes rectangles, squares, circles, and ovals, perfect for a wide range of applications.
Specialty Shapes: Unique designs such as triangles, hexagons, and irregular forms, allowing for custom and artistic installations.
♦ Customization Options:
Tailored solutions to match specific project requirements and aesthetic preferences.
Ability to create custom shapes and sizes with precision and attention to detail.
♦ Quality and Precision:
Utilization of advanced cutting and shaping techniques for flawless edges and consistent dimensions.
Stringent quality control measures ensure durability and aesthetic appeal in every piece.
♦ Applications Across Industries:
Ideal for architectural features, decorative elements, furniture components, and more.
Enhance interiors and exteriors with our versatile glass shapes, offering both practicality and aesthetic enhancement.
At Jily, we offer a range of strength options for our glass products, ensuring durability and safety for various applications. Whether you need glass for residential, commercial, or industrial purposes, our strength options are designed to meet stringent quality standards and performance requirements.
♦ Strength Variations:
Tempered Glass: Known for its enhanced strength and safety due to heat treatment, ideal for applications requiring increased resistance to impact and thermal stress.
Laminated Glass: Provides excellent safety features by holding together when shattered, suitable for applications requiring protection against break-ins, impacts, and noise transmission.
Insulated Glass: Offers superior thermal insulation properties, reducing heat loss and condensation, perfect for energy-efficient building designs.
Low-Iron Glass: Provides exceptional clarity and light transmission, ideal for applications where aesthetics and visibility are crucial.
Fire-Rated Glass: Designed to withstand high temperatures and prevent the spread of fire, essential for buildings requiring fire safety compliance.
♦ Customization and Compliance:
Tailored solutions to meet specific strength requirements and regulatory standards.
Compliance with industry norms and certifications to ensure reliability and performance in diverse environments.
♦ Applications:
Suitable for windows, doors, facades, partitions, shelves, and more.
Enhance safety, energy efficiency, and aesthetic appeal in residential, commercial, and industrial settings.
Jily Glass Drill Holes provide a precise and reliable solution for creating openings in glass panels. These drill holes are meticulously crafted to ensure smooth and accurate perforations, making them ideal for a variety of applications in both residential and commercial settings.
♦ Key Features:
Precision Engineering: Designed for exact and clean cuts, ensuring high accuracy and minimal damage to the glass.
High-Quality Materials: Made from durable materials to withstand repeated use and maintain performance over time.
Versatile Applications: Suitable for various uses, including glass doors, windows, partitions, and decorative panels.
Ease of Use: Simple and straightforward to use, allowing for efficient drilling with professional results.
Customizable Options: Available in different sizes and configurations to meet specific project requirements.
Jily Glass Drill Holes are the perfect choice for achieving professional-grade openings in glass, providing both functionality and aesthetic appeal.
♦ Standard Sizes
Small Panels: Available from as small as 100mm x 100mm (4" x 4").
Medium Panels: Common sizes such as 500mm x 500mm (20" x 20") and 1000mm x 1000mm (40" x 40").
Large Panels: Up to 2440mm x 3660mm (96" x 144"), ideal for expansive architectural applications.
♦ Custom Sizes
Precision Cutting: Tailored to meet your specific dimensions, ensuring a perfect fit for unique projects.
Flexible Dimensions: From minute details to grand designs, we can produce glass in virtually any size required.
♦ Thickness Variations
Thin Glass: Starting from 2mm for delicate applications.
Standard Thickness: Commonly available in 4mm (5/32"), 6mm (1/4"), 8mm (5/16"), and 10mm(3/8").
Thick Glass: Up to 25mm for robust, structural uses.
Color Options
♦ Clear Glass
Description: Crystal clear glass that offers maximum transparency and light transmission.
Applications: Ideal for windows, doors, partitions, and other applications where visibility is paramount.
♦ Bronze Tint
Description: A warm, bronze hue that adds a touch of elegance and reduces glare.
Applications: Perfect for windows, facades, and decorative elements.
♦ Grey Tint
Description: A sleek, grey tint that provides a modern, sophisticated look while reducing heat and glare.
Applications: Suitable for office buildings, storefronts, and contemporary designs.
♦ Green Tint
Description: A subtle green shade that enhances aesthetics and improves energy efficiency by reducing heat absorption.
Applications: Ideal for eco-friendly buildings, sunrooms, and greenhouses.
♦ Blue Tint
Description: A calming blue tint that offers a unique aesthetic appeal and reduces glare.
Applications: Perfect for coastal properties, offices, and commercial buildings.
♦ Custom Colors
Description: Tailor-made colors to match your specific design requirements.
Applications: From bold, vibrant shades to muted, subtle tones, our custom color options are perfect for any unique project.
♦ We offer a comprehensive range of sea and air logistics services to provide you with the most convenient experience. Our rapid response ensures you save valuable time.
♦ Online trade assurance order, all is up to you.
♦ More payment terms could be provided (T/T, PAYPAL, WESTERN UNION)
All glass is securely packaged using options such as wooden crates, plywood boxes, or cardboard boxes. Each piece is also fitted with corner protectors to ensure its safety during delivery.
Precision and Quality: Advanced machinery and stringent quality control processes ensure perfect edgework and durability.
Tailored Solutions: Custom sizes and colors available to match the specific needs of your project.
Experienced Team: Our skilled professionals bring decades of expertise in the glass industry to each project.
Global Service: Efficient logistics and export services ensure timely delivery to any location worldwide.
At Jily, we understand that the details make the difference. Our edgework samples are crafted to add both functionality and beauty to your glass projects. Partner with us for unparalleled quality and customized solutions.
For inquiries and custom orders, please contact us at [contact information]. Let Jily provide the perfect edgework solution for your next project.
